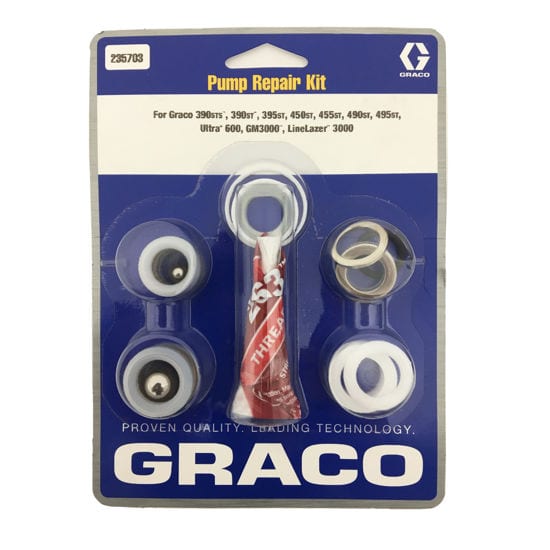

This repair kit replaces the Packings, O-Rings, and Balls inside of the fluid section of many airless paint sprayers. This part is also known as 243091, and can be used interchangeably.
Graco Genuine OEM part #235703 Pump Repair Kit fits several models including: Graco 390sts, 390st, 395st, 450st, 455st, 490st, 495st, Ultra 600, GM3000 and Line Lazer 3000. Packing repair kit for several older model Graco’s
See Below for a list of models:
| Airless Sprayer | Sprayer Model No. | Series Letter |
|---|---|---|
| DT | 234139 | |
| 230 ES (Home Depot Rental) | 246737 | |
| SP | 826031 | |
| ST | 234127 | |
| 190 ES Stand (Home Depot Series) | 232900 | A,B,C,D,E,F |
| 190 ES Stand | 232901 | A,B,C,D,E |
| 190 ES Stand | 233797 | A,B,C,D,E |
| 190 ES HiBoy | 233815 | A,B,C,D,E |
| 490 ST | 231208 | |
| 490 ST high boy | 231357 | |
| 495 Duron | 232654 | |
| 495 Duron Hi Boy | 232655 | |
| 495 ST | 231584 | |
| 495 ST Hi-Boy | 231586 | |
| 495 ST Hi-Boy | 232676 | |
| 495 ST LO BOY | 231585 | |
| 600 Plus ULTIMATE UPRIGHT | 820208 | |
| 600 Plus ULTIMATE LOBOY | 820206 | |
| 600 ULTIMATE | 820183 | |
| 600 Ultra | 231307 | |
| 600 Ultra (Complete) | 231325 | |
| 600 Ultra Plus Bare Lo-boy | 231346 | |
| 600 Ultra Plus Bare Hi-boy | 231348 | |
| 600 Ultra Plus Complete Lo-boy | 231356 | |
| 600 Ultra Plus Complete Hi-boy | 240788 | |
| NOVA PLUS | 824002 | |
| NOVA SP | 820158 | |
| NOVA SPX | 824012 | |
| NOVA SPX (OLD) | 820226 | |
| Pro 301ST(Fuller O’Brien) | 231202 | |
| Pro 301sts (Fuller O’Brien) | 231344 | |
| PRO 501ST (Fuller O’Brien) | 231299 | |
| SUPER NOVA SP (NEW) | 824175 | |
| SUPER NOVA SP (NEW) | 820169 | |
| SUPER NOVA SP (OLD) | 820248 | |
| 3000 GM LOBOY (Bare) | 231550 | |
| 3000 GM LOBOY | 231552 | |
| 3000 GM UPRIGHT (Bare) | 231363 | |
| 3000 GM UPRIGHT | 231551 | |
| 390 Duron | 231553 | |
| 390 ST | 231201 | |
| 390 STS | 231353 | |
| 395 Duron | 231580 | |
| 395 ST | 231575 | |
| 450 ST | 231547 | |
| 455 ST | 231581 | |
| 3000 LineLazer | 232650 | |
| 3000 LineLazer | 233010 |
Please always refer to your owner’s manual before ordering.
Packaging look may vary depending on stock.
UPC: 00633955053113
Call for Price
This repair kit replaces the Packings, O-Rings, and Balls inside of the fluid section of many airless paint sprayers. This part is also known as 243091, and can be used interchangeably.
Graco Genuine OEM part #235703 Pump Repair Kit fits several models including: Graco 390sts, 390st, 395st, 450st, 455st, 490st, 495st, Ultra 600, GM3000 and Line Lazer 3000. Packing repair kit for several older model Graco’s
See Below for a list of models:
| Airless Sprayer | Sprayer Model No. | Series Letter |
|---|---|---|
| DT | 234139 | |
| 230 ES (Home Depot Rental) | 246737 | |
| SP | 826031 | |
| ST | 234127 | |
| 190 ES Stand (Home Depot Series) | 232900 | A,B,C,D,E,F |
| 190 ES Stand | 232901 | A,B,C,D,E |
| 190 ES Stand | 233797 | A,B,C,D,E |
| 190 ES HiBoy | 233815 | A,B,C,D,E |
| 490 ST | 231208 | |
| 490 ST high boy | 231357 | |
| 495 Duron | 232654 | |
| 495 Duron Hi Boy | 232655 | |
| 495 ST | 231584 | |
| 495 ST Hi-Boy | 231586 | |
| 495 ST Hi-Boy | 232676 | |
| 495 ST LO BOY | 231585 | |
| 600 Plus ULTIMATE UPRIGHT | 820208 | |
| 600 Plus ULTIMATE LOBOY | 820206 | |
| 600 ULTIMATE | 820183 | |
| 600 Ultra | 231307 | |
| 600 Ultra (Complete) | 231325 | |
| 600 Ultra Plus Bare Lo-boy | 231346 | |
| 600 Ultra Plus Bare Hi-boy | 231348 | |
| 600 Ultra Plus Complete Lo-boy | 231356 | |
| 600 Ultra Plus Complete Hi-boy | 240788 | |
| NOVA PLUS | 824002 | |
| NOVA SP | 820158 | |
| NOVA SPX | 824012 | |
| NOVA SPX (OLD) | 820226 | |
| Pro 301ST(Fuller O’Brien) | 231202 | |
| Pro 301sts (Fuller O’Brien) | 231344 | |
| PRO 501ST (Fuller O’Brien) | 231299 | |
| SUPER NOVA SP (NEW) | 824175 | |
| SUPER NOVA SP (NEW) | 820169 | |
| SUPER NOVA SP (OLD) | 820248 | |
| 3000 GM LOBOY (Bare) | 231550 | |
| 3000 GM LOBOY | 231552 | |
| 3000 GM UPRIGHT (Bare) | 231363 | |
| 3000 GM UPRIGHT | 231551 | |
| 390 Duron | 231553 | |
| 390 ST | 231201 | |
| 390 STS | 231353 | |
| 395 Duron | 231580 | |
| 395 ST | 231575 | |
| 450 ST | 231547 | |
| 455 ST | 231581 | |
| 3000 LineLazer | 232650 | |
| 3000 LineLazer | 233010 |
Please always refer to your owner’s manual before ordering.
Packaging look may vary depending on stock.
UPC: 00633955053113
| Weight | 1 lbs |
|---|---|
| Dimensions | 7 × 5 × 1 in |
