25M224 Graco LineLazer 3400 Gas Airless Line Striper – 1 Manual Gun

25M224 LINELAZER 3400

*****NOTE: Please call or email before ordering because of the weight of this machine. There may also be a hold for availability. We can also offer discounts that may not be seen by this posting.

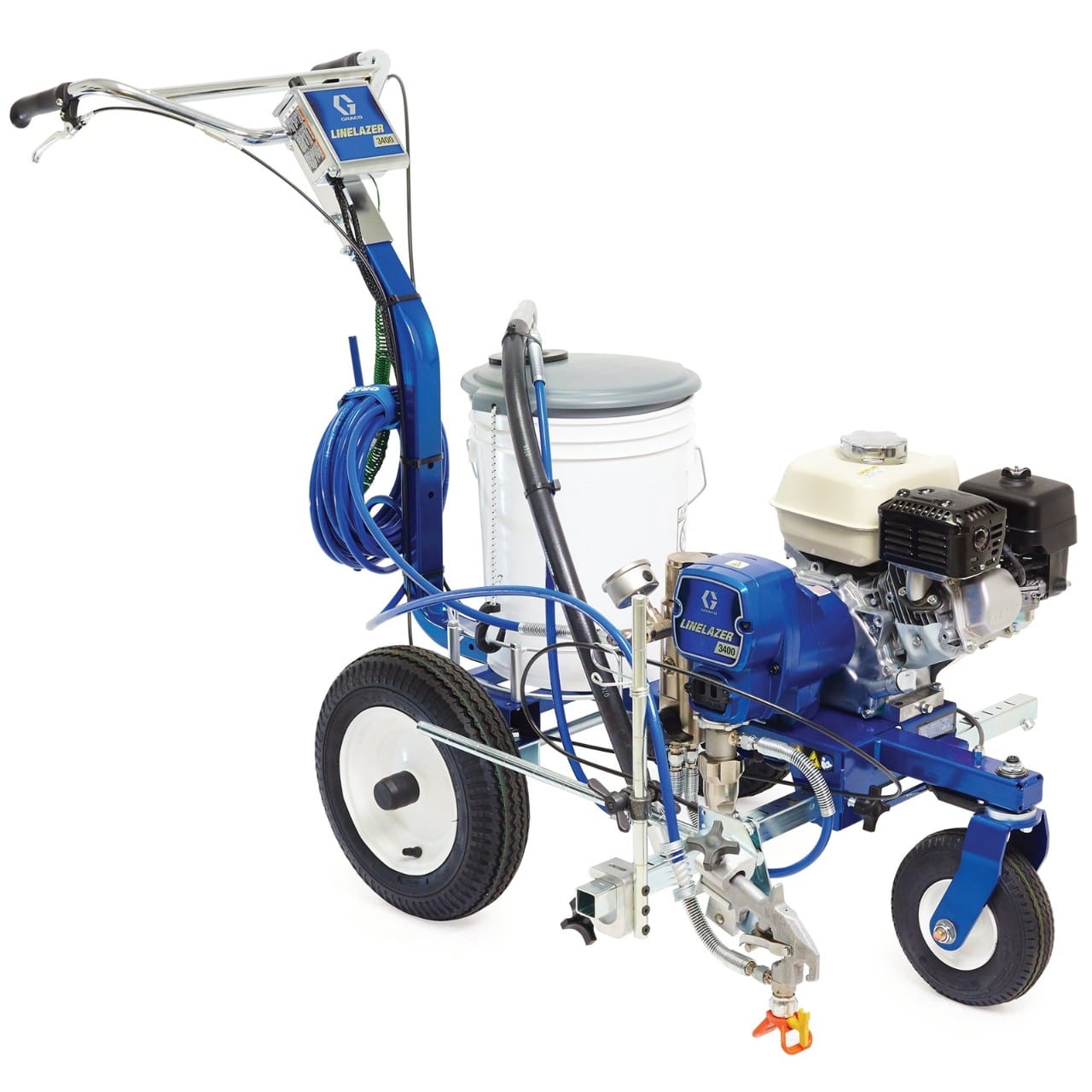

LineLazer 3400 Gas Airless Line Striper, 1 Manual Gun

#25M224

The LineLazer 3400 is the professional choice for dependable, 1-gun striping for small parking lots, mini malls, seal coating contractors, schools and park and recreation departments.
Description:
  • Updated Frame
    • Improved Tracking & Line Quality
    • Added stability with newly designed, 3-inch longer frame
    • Accepts 15-gallon hopper and EZ Bead System
  • Rear Mount Hose Wrap
    • Easier Stencil Jobs
    • Easy on/off functionality
  • Easy-To-Reach Controls
    • Fine-tune the striper without stopping
    • Operator controls are located on the handlebars
  • New Handlebar Design
    • Reduced Vibration
    • Less operator fatigue with greater comfort and control
  • Electronic Pressure Control
    • Improved Line Quality
    • Accurate, tight tolerance system
  • Endurance Chromex Pump
    • Reliable, Long-Life Pump
    • Industry-best pump performance — field-proven design
    • Handle the most demanding materials with long-life rod treatment
    • 4X harder than ordinary chrome
  • Honda GX Engine
    • Reliable, Easy-to-Start Power
    • Contractor-preferred — excellent power and proven reliability
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • Easy Out Pump Filter
    • Easy Pump Maintenance & Less Clogging
    • Inside-out design means less mess with fewer tip clogs
  • Front Swivel Wheel
    • Easier Maneuverability
    • Ability to stripe right up to the curb
    • Makes easy work of hard-to-do curves
    • Years of dependable operation with tapered locking pin design



Technical Specifications
Compatible MaterialRoad-Marking Paint
Compatible SurfacesPavement, Turf
Engine BrandHonda
Engine ModelGX120
Fuel Tank Capacity (gal)0.66
Gun ActivationManual
Hopper Volume Capacity (gal)15
IncludesFlex Plus Gun, LineLazer RAC 5 317 Spray Tip, LineLazer RAC 5 319 Spray Tip, RAC 5 Tip Guard, 1/4 in x 50 ft (15 m) BlueMax II Airless Hose, 1/4 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose, TSL, 4 oz (118 ml)
Maximum Flow Rate (GPM)0.75
Maximum Sound Pressure Level (dB(A))91
Maximum Tip Size (in)0.027
Maximum Working Pressure (psi)3300
ModelLineLazer
Number of ColorsOne Color
Number of Guns1
Number of Pumps1
Overall Height (in)39.4
Overall Length (in)66.3
Overall Width (in)26
Power Rating (HP)4
Power Rating (W)2980
Power Rating (kW)2.98
Power SourceGas
Pump TypeEndurance
Recommended Annual UsageUp to 250 gallons per week
Series3400
TypeWalk-Behind Line Striper
Weight (lb)160

25M224 manual

$8,740.00

1 in stock

Description

25M224 LINELAZER 3400

*****NOTE: Please call or email before ordering because of the weight of this machine. There may also be a hold for availability. We can also offer discounts that may not be seen by this posting.

LineLazer 3400 Gas Airless Line Striper, 1 Manual Gun

#25M224

The LineLazer 3400 is the professional choice for dependable, 1-gun striping for small parking lots, mini malls, seal coating contractors, schools and park and recreation departments.
Description:
  • Updated Frame
    • Improved Tracking & Line Quality
    • Added stability with newly designed, 3-inch longer frame
    • Accepts 15-gallon hopper and EZ Bead System
  • Rear Mount Hose Wrap
    • Easier Stencil Jobs
    • Easy on/off functionality
  • Easy-To-Reach Controls
    • Fine-tune the striper without stopping
    • Operator controls are located on the handlebars
  • New Handlebar Design
    • Reduced Vibration
    • Less operator fatigue with greater comfort and control
  • Electronic Pressure Control
    • Improved Line Quality
    • Accurate, tight tolerance system
  • Endurance Chromex Pump
    • Reliable, Long-Life Pump
    • Industry-best pump performance — field-proven design
    • Handle the most demanding materials with long-life rod treatment
    • 4X harder than ordinary chrome
  • Honda GX Engine
    • Reliable, Easy-to-Start Power
    • Contractor-preferred — excellent power and proven reliability
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • Easy Out Pump Filter
    • Easy Pump Maintenance & Less Clogging
    • Inside-out design means less mess with fewer tip clogs
  • Front Swivel Wheel
    • Easier Maneuverability
    • Ability to stripe right up to the curb
    • Makes easy work of hard-to-do curves
    • Years of dependable operation with tapered locking pin design



Technical Specifications
Compatible MaterialRoad-Marking Paint
Compatible SurfacesPavement, Turf
Engine BrandHonda
Engine ModelGX120
Fuel Tank Capacity (gal)0.66
Gun ActivationManual
Hopper Volume Capacity (gal)15
IncludesFlex Plus Gun, LineLazer RAC 5 317 Spray Tip, LineLazer RAC 5 319 Spray Tip, RAC 5 Tip Guard, 1/4 in x 50 ft (15 m) BlueMax II Airless Hose, 1/4 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose, TSL, 4 oz (118 ml)
Maximum Flow Rate (GPM)0.75
Maximum Sound Pressure Level (dB(A))91
Maximum Tip Size (in)0.027
Maximum Working Pressure (psi)3300
ModelLineLazer
Number of ColorsOne Color
Number of Guns1
Number of Pumps1
Overall Height (in)39.4
Overall Length (in)66.3
Overall Width (in)26
Power Rating (HP)4
Power Rating (W)2980
Power Rating (kW)2.98
Power SourceGas
Pump TypeEndurance
Recommended Annual UsageUp to 250 gallons per week
Series3400
TypeWalk-Behind Line Striper
Weight (lb)160

25M224 manual

Additional information

Weight160 lbs
Dimensions74 × 39 × 51 in
