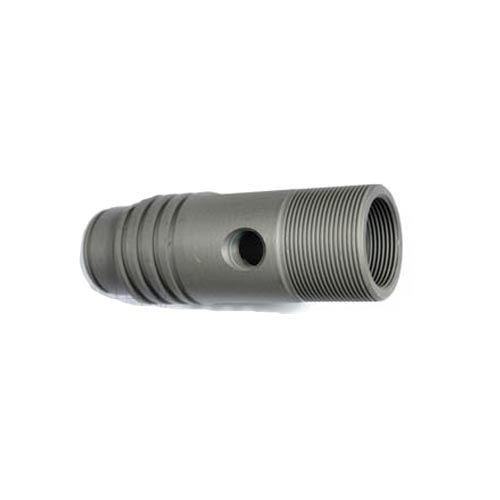

Graco Paint Sprayer Pump Cylinder – #243176
The cylinder houses the internal parts to paint sprayer fluid section. This is the section that encloses the packings and paint sprayer rod.
For use with these airless paint sprayers:
| Airless Paint Sprayers | Sprayer Model No. | Series Letter | Corresponding Fluid Section |
|---|---|---|---|
| 490 II Ultra Max Hi-Boy | 249914 | 246428 | |
| 490 II Ultra Max Lo-Boy | 249913 | 246428 | |
| 490 II Ultra Max Stand | 249911 | 246428 | |
| 490 II Ultimate MX Stand | 825028 | 246428 | |
| 490 II Ultimate MX Hi-Boy | 825036 | 246428 | |
| 490 II Ultimate MX Lo-Boy | 825029 | 246428 | |
| 495 Duron Pro | 232990 | 243183 | |
| 495 Duron Pro HiBoy | 232992 | 243183 | |
| 495 Hi Performance Max | 233982 | 246428 | |
| 495 Performance Max | 233981 | 246428 | |
| 495 ST PRO-Hi Complete | 232942 | 243183 | |
| 495 ST PRO-Lo Complete | 232941 | 243183 | |
| 495 ST PRO-Stand Mount | 232940 | 243183 | |
| 495 ULTIMATE NOVA HB | 826019 | 246428 | |
| 495 ULTIMATE NOVA LB | 826018 | 246428 | |
| 495 ULTIMATE NOVA S | 826017 | 246428 | |
| 495 Ultra HI-BOY | 233968 | 246428 | |
| 495 Ultra LO-BOY | 233967 | 246428 | |
| 495 Ultra STAND | 233966 | 246428 | |
| 495 II Ultra Max Hi-Boy | 249917 | 246428 | |
| 495 II Ultra Max Lo-Boy | 249916 | 246428 | |
| 495 II Ultra Max Stand | 249915 | 246428 | |
| 495 II Ultimate Stand | 825037 | 246428 | |
| 495 II Ultimate MX Hi-Boy | 825039 | 246428 | |
| 495 II Ultimate MX Lo-Boy | 825038 | 246428 | |
| 595 Duron Pro Hi boy | 234590 | 246428 | |
| 595 Duron Pro Lo boy | 234589 | 246428 | |
| 595 Ultimate S. Nova Hi | 826046 | 246428 | |
| 595 Ultimate S. Nova Lo | 826052 | 246428 | |
| 595 Ultra Hi boy | 234435 | 246428 | |
| 595 Ultra Lo boy | 234490 | 246428 | |
| 595 II Ultra Max Hi-Boy | 249919 | 246428 | |
| 595 II Ultra Max Lo-Boy | 249918 | 246428 | |
| 595 II Ultimate MX Hi-Boy | 825045 | 246428 | |
| 595 II Ultimate MX Lo-Boy | 825046 | 246428 | |
| 695 Ultimate Mx Hi | 826024 | 246428 | |
| 695 Ultimate Mx Lo | 826025 | 246428 | |
| 695 Ultimate Mx Hi | 825000 | A,B | 244195, 246428 |
| 695 Ultimate Mx LO | 825002 | A,B | 244195, 246428 |
| 695 Ultra Max Hi boy | 245000 | A,B | 244195, 246428 |
| 695 UltraMax Hi boy | 245001 | A,B | 244195, 246428 |
| 695 Ultra Max Lo-boy | 245002 | A,B | 244195, 246428 |
| 695 Ultra Max Lo-boy | 245003 | A,B | 244195, 246428 |
| 695 Rental Hi Boy (245000 Sprayer) | 245050 | 244195 | |
| DTX | 234140 | 246426 | |
| NOVA (new) HiBoy | 824922 | 243183 | |
| NOVA (new)-Stand | 824920 | 243183 | |
| NOVA-PRO HI boy | 824932 | 243183 | |
| 190ES High Boy (Factory Filter) | 261825 | 255198 | |
| 190 LTS Magnum High Boy | 257075 | 255198 | |
| 210 ES High Boy | 261830 | 255198 | |
| 210 LTS Magnum | 257085 | 255198 | |
| 210 RentalPro | 255679 | 246428 | |
| 230 ES RentalPro | 261904 | 246428 | |
| 295 ST | 233686 | A,B | 243183 |
| NOVA-PRO Stand Mount | 824930 | 243183 | |
| SPX | 826032 | 246426 | |
| SPX,SW,RENTAL (Reference 826032) | 826020 | 246426 | |
| SPX | 826009 | A,B,C | 243183 |
| STX | 234126 | 246426 | |
| SUPER NOVA-PRO HiBoy | 824942 | 243183 | |
| SUPER NOVA-PRO LoBoy | 824941 | 243183 | |
| SUPER NOVA-PRO Stand | 824940 | 243183 | |
| 3400 GMAX (HI boy bare) | 248663 | 246428 | |
| 3400 GMAX (Hi boy Comp) | 248664 | 246428 | |
| 3400 GMAX (LO boy bare) | 248665 | 246428 | |
| 3400 GMAX (Lo boy comp) | 248666 | 246428 | |
| 390 Hi Boy | 262019 | 246428 | |
| 390 (With Factory Filter) | 253958 | A,B | 246428 |
| 390(2005) | 248800 | 249127 | |
| 390 Duron (2005) | 248802 | 249127 | |
| ProStep 390 | 826098 | 246428 | |
| 390 Nova (With Factory Filter) | 826084 | A , B | 246428 |
| 395 ST PRO-Hi Boy | 232922 | 243183 | |
| 395 ST PRO-Stand Mount | 232920 | 243183 | |
| 395 ULTIMATE NOVA HB | 826016 | A,B | 246428 |
| 395 ULTIMATE NOVA LB | 826015 | A,B | 246428 |
| 390 Nova (2005) | 826055 | 249127 | |
| 395 Duron Pro | 232970 | 243183 | |
| 395 Performance Max | 233980 | 246428 | |
| 395 ULTIMATE NOVA S | 826014 | A,B | 246428 |
| 395 Ultra 395 STAND | 233960 | A,B | 246428 |
| 395 Ultra HI-BOY | 233962 | A,B | 246428 |
| 395 Ultra LO-BOY | 233961 | A,B | 246428 |
| 455 ST PRO-Hi Complete | 232932 | 243183 | |
| 455 ST PRO-Lo Complete | 232931 | 243183 | |
| 455 ST PRO-Stand Mount | 232930 | 243183 | |
| 3400 LineLazer | 248861 | 246428 | |
| Field Lazer | 248942 | 246426 | |
| Turf Liner (S/W) | 826059 | 246426 | |
| FinishPro 390 | 249690 | 246428 | |
| FinishPro 395 | 249691 | 246428 | |
| 500 FT | 826115 | 246428 | |
| 190 LTS Magnum Stand | 257418 | 255198 | |
| 295 ST | 233823 | A,B,C | 243183 |
***Note: #243176 and 17D481 are interchangeable.
UPC: 00633955917866
https://www.facebook.com/cofieldsupplyandservice
https://cofieldstore.com/product/17d481-graco-replacement-pump-cylinder/
Call for Price
Graco Paint Sprayer Pump Cylinder – #243176
The cylinder houses the internal parts to paint sprayer fluid section. This is the section that encloses the packings and paint sprayer rod.
For use with these airless paint sprayers:
| Airless Paint Sprayers | Sprayer Model No. | Series Letter | Corresponding Fluid Section |
|---|---|---|---|
| 490 II Ultra Max Hi-Boy | 249914 | 246428 | |
| 490 II Ultra Max Lo-Boy | 249913 | 246428 | |
| 490 II Ultra Max Stand | 249911 | 246428 | |
| 490 II Ultimate MX Stand | 825028 | 246428 | |
| 490 II Ultimate MX Hi-Boy | 825036 | 246428 | |
| 490 II Ultimate MX Lo-Boy | 825029 | 246428 | |
| 495 Duron Pro | 232990 | 243183 | |
| 495 Duron Pro HiBoy | 232992 | 243183 | |
| 495 Hi Performance Max | 233982 | 246428 | |
| 495 Performance Max | 233981 | 246428 | |
| 495 ST PRO-Hi Complete | 232942 | 243183 | |
| 495 ST PRO-Lo Complete | 232941 | 243183 | |
| 495 ST PRO-Stand Mount | 232940 | 243183 | |
| 495 ULTIMATE NOVA HB | 826019 | 246428 | |
| 495 ULTIMATE NOVA LB | 826018 | 246428 | |
| 495 ULTIMATE NOVA S | 826017 | 246428 | |
| 495 Ultra HI-BOY | 233968 | 246428 | |
| 495 Ultra LO-BOY | 233967 | 246428 | |
| 495 Ultra STAND | 233966 | 246428 | |
| 495 II Ultra Max Hi-Boy | 249917 | 246428 | |
| 495 II Ultra Max Lo-Boy | 249916 | 246428 | |
| 495 II Ultra Max Stand | 249915 | 246428 | |
| 495 II Ultimate Stand | 825037 | 246428 | |
| 495 II Ultimate MX Hi-Boy | 825039 | 246428 | |
| 495 II Ultimate MX Lo-Boy | 825038 | 246428 | |
| 595 Duron Pro Hi boy | 234590 | 246428 | |
| 595 Duron Pro Lo boy | 234589 | 246428 | |
| 595 Ultimate S. Nova Hi | 826046 | 246428 | |
| 595 Ultimate S. Nova Lo | 826052 | 246428 | |
| 595 Ultra Hi boy | 234435 | 246428 | |
| 595 Ultra Lo boy | 234490 | 246428 | |
| 595 II Ultra Max Hi-Boy | 249919 | 246428 | |
| 595 II Ultra Max Lo-Boy | 249918 | 246428 | |
| 595 II Ultimate MX Hi-Boy | 825045 | 246428 | |
| 595 II Ultimate MX Lo-Boy | 825046 | 246428 | |
| 695 Ultimate Mx Hi | 826024 | 246428 | |
| 695 Ultimate Mx Lo | 826025 | 246428 | |
| 695 Ultimate Mx Hi | 825000 | A,B | 244195, 246428 |
| 695 Ultimate Mx LO | 825002 | A,B | 244195, 246428 |
| 695 Ultra Max Hi boy | 245000 | A,B | 244195, 246428 |
| 695 UltraMax Hi boy | 245001 | A,B | 244195, 246428 |
| 695 Ultra Max Lo-boy | 245002 | A,B | 244195, 246428 |
| 695 Ultra Max Lo-boy | 245003 | A,B | 244195, 246428 |
| 695 Rental Hi Boy (245000 Sprayer) | 245050 | 244195 | |
| DTX | 234140 | 246426 | |
| NOVA (new) HiBoy | 824922 | 243183 | |
| NOVA (new)-Stand | 824920 | 243183 | |
| NOVA-PRO HI boy | 824932 | 243183 | |
| 190ES High Boy (Factory Filter) | 261825 | 255198 | |
| 190 LTS Magnum High Boy | 257075 | 255198 | |
| 210 ES High Boy | 261830 | 255198 | |
| 210 LTS Magnum | 257085 | 255198 | |
| 210 RentalPro | 255679 | 246428 | |
| 230 ES RentalPro | 261904 | 246428 | |
| 295 ST | 233686 | A,B | 243183 |
| NOVA-PRO Stand Mount | 824930 | 243183 | |
| SPX | 826032 | 246426 | |
| SPX,SW,RENTAL (Reference 826032) | 826020 | 246426 | |
| SPX | 826009 | A,B,C | 243183 |
| STX | 234126 | 246426 | |
| SUPER NOVA-PRO HiBoy | 824942 | 243183 | |
| SUPER NOVA-PRO LoBoy | 824941 | 243183 | |
| SUPER NOVA-PRO Stand | 824940 | 243183 | |
| 3400 GMAX (HI boy bare) | 248663 | 246428 | |
| 3400 GMAX (Hi boy Comp) | 248664 | 246428 | |
| 3400 GMAX (LO boy bare) | 248665 | 246428 | |
| 3400 GMAX (Lo boy comp) | 248666 | 246428 | |
| 390 Hi Boy | 262019 | 246428 | |
| 390 (With Factory Filter) | 253958 | A,B | 246428 |
| 390(2005) | 248800 | 249127 | |
| 390 Duron (2005) | 248802 | 249127 | |
| ProStep 390 | 826098 | 246428 | |
| 390 Nova (With Factory Filter) | 826084 | A , B | 246428 |
| 395 ST PRO-Hi Boy | 232922 | 243183 | |
| 395 ST PRO-Stand Mount | 232920 | 243183 | |
| 395 ULTIMATE NOVA HB | 826016 | A,B | 246428 |
| 395 ULTIMATE NOVA LB | 826015 | A,B | 246428 |
| 390 Nova (2005) | 826055 | 249127 | |
| 395 Duron Pro | 232970 | 243183 | |
| 395 Performance Max | 233980 | 246428 | |
| 395 ULTIMATE NOVA S | 826014 | A,B | 246428 |
| 395 Ultra 395 STAND | 233960 | A,B | 246428 |
| 395 Ultra HI-BOY | 233962 | A,B | 246428 |
| 395 Ultra LO-BOY | 233961 | A,B | 246428 |
| 455 ST PRO-Hi Complete | 232932 | 243183 | |
| 455 ST PRO-Lo Complete | 232931 | 243183 | |
| 455 ST PRO-Stand Mount | 232930 | 243183 | |
| 3400 LineLazer | 248861 | 246428 | |
| Field Lazer | 248942 | 246426 | |
| Turf Liner (S/W) | 826059 | 246426 | |
| FinishPro 390 | 249690 | 246428 | |
| FinishPro 395 | 249691 | 246428 | |
| 500 FT | 826115 | 246428 | |
| 190 LTS Magnum Stand | 257418 | 255198 | |
| 295 ST | 233823 | A,B,C | 243183 |
***Note: #243176 and 17D481 are interchangeable.
UPC: 00633955917866
https://www.facebook.com/cofieldsupplyandservice
https://cofieldstore.com/product/17d481-graco-replacement-pump-cylinder/
| Weight | 2 lbs |
|---|---|
| Dimensions | 5 × 6 × 2 in |
